Außerdem habe ich einige interessante Infos von Federico bekommen:
The analysis of the guy of linkagedesign is almost right but I have to tell you that even if we also use Linkage we have noticed that the data and the graphics generated by linkage do not always correspond to the real behavior of the suspension and to the real sensations that you feel in the use.

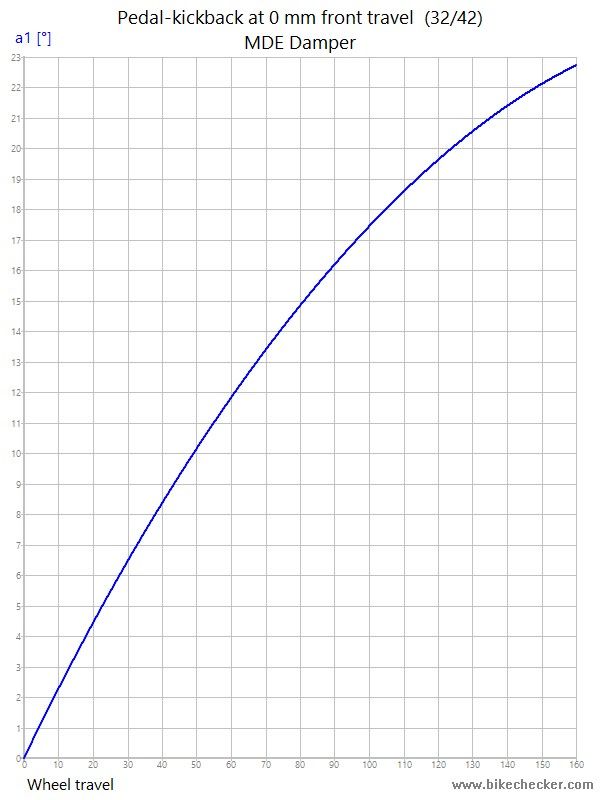

I can tell you that the new Damper has a very high anti-squat level. Greater than the previous model. And this entails a great pedaling stability. On the other hand, it has a very light pedalkickbak effect that was completely absent in the previous model. With the new Damper we wanted to push both the Anti-squat level and the pedal quickback level to the limits of performance. If we had given a little more of both values, we would have gone beyond annoying levels. But instead we are convinced that we have remained on the crest. And I must tell you that we are having confirmation of this from the first users of the new Damper, many of whom were already users of the previous model and all of them are confirming that the performance of the new Damper is clearly superior respect the old one, in particular for the efficiency pedaling and responsiveness inside curves. Yes, there is a minimum of pedal kickback on this version and it was wanted during the develope phase because we consider it necessary to increase the performance of the bike. But I can assure you that it is a level that is barely perceptible and never annoying.

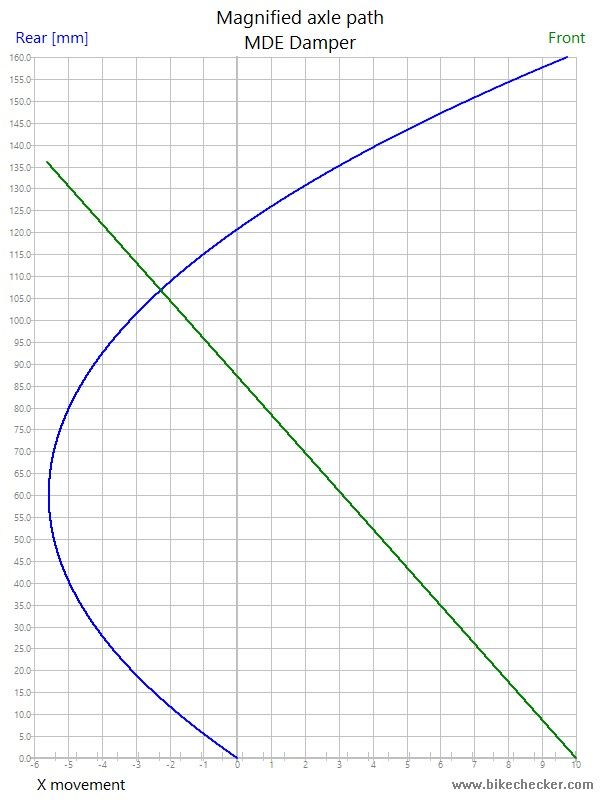

The path of the rear wheel axle is also very important. Making a compromise we preferred to have a little pedal kickback, getting a better trajectory of the wheel in return. This is designed to further facilitate the overcoming of the obstacle. So now in the very first part of the movement of the wheels the axle goes back up to 5 mm (previously this value was 2 mm) up to the level of sag, and then goes in fornt for the rest of the travel. This allows a better overcoming of the obstacle, favoring more the natural movement in the impact phase and then crushing the bike and pushing it once the impact is overcome. This also proved to be an improvement for us.
You refer to the anti-squat on long gear ratios, but normally when you pedalin wiht 32T-10t or 14T your are in descendant or at least flat. So you shouldn't push hard or at least do it but on very high rotation frequencies, frequencies and levels that are normally not very influential on the anti-squat. While very important is that the suspension is stable when you push hard uphill at a much slower pace. The new Damper in these situations is exceptional. The suspension does not move. It is completely still. And that was our goal.

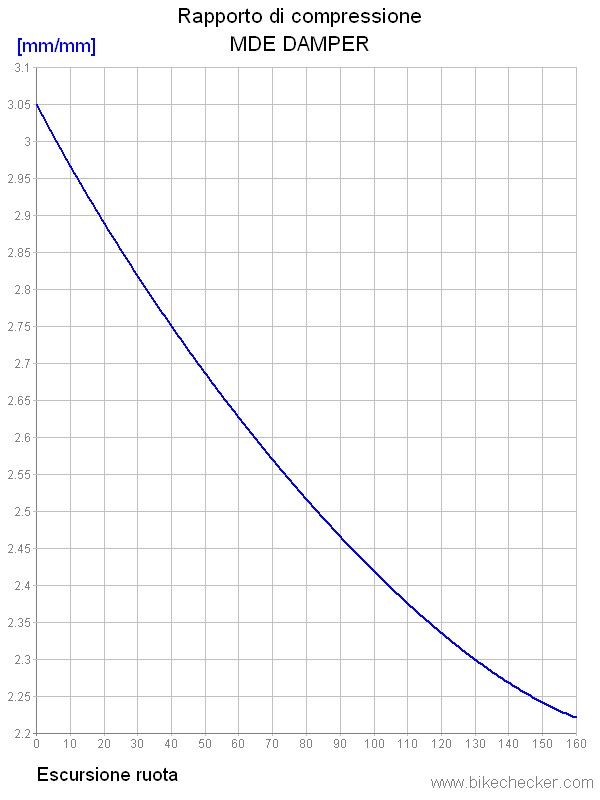

About the leveral ratio the curve is pretty similar to the old model. It is a progressive curve tha became little bit less progressive at the end, close to be linear (non regressive) but just in the last few millimeter.
Also this is something that we studied and defined during the development. For us the most important part of the travel is the mid part. It is very important that this part is supported and on the new Damper, this part it is very progressive. We also noticed that with the shock absorbers with medium settings which are the ones we take as reference (both air or coil) a more linear final part helps to use the whole travel especially because being the first part very progressive, already from halfway on, the rate is very high. If we had pushed the progressivity even at the end it would have taken shock absorbers with special settings to be able to take advantage of the whole travel.
Anyway we are super happy about how the new Damper's suspension works and we are sure it is a significant improve in performance respect our old model.
Jeder der schon eins bestellt hat, Glückwunsch. Wer es vor hat, da macht ihr nichts falsch! Mit RiderTunedGeometry könnt ihr es perfekt für euch abstimmen. Würde es deshalb jederzeit einem Pole (habe selber eins), Nicolai oder auch RAAW vorziehen.
Bei Fragen hilft Federico per Mail stets weiter, dauert manchmal bisschen, weil viel zu tun ist.
Ich habe bei der RiderTunedGeometry sogar die Kettenstrebenlänge anpassen können!
Ganz viele
für MDE & den besten Service den ich je erlebt habe!
Sehr interessant, danke fürs teilen der Graphen und Erläuterungen dazu.
Bin auf der Suche nach nem neuen Bike für die Saison auch lange am MDE hängen geblieben. Vor allem eben aufgrund des neuen Hinterbaus. (Produktion in Italien und Individualisierung mal noch außen vor)...
Ich teil da deine Meinung auch, dass das MDE grundsätzlich wohl auf dem Papier aktuell einen der besten Hinterbauten für den Einsatzbereich hat. Zumindest nach meinem Geschmack, gibt da sicher auch andere Ansichten, wie es ja Raaw zB auch macht...
Der Anti Rise wird meiner Meinung nach bei Enduro absolut unterschätzt und ist mit eines der wichtigsten Kriterien wie sich ein Rad dann vor allem in extremeren und schnelleren Situationen verhält.
Soweit ich das im Kopf hab geht MDE da auch ziemlich nah an die 100 Prozent ran. Hast du da evtl auch noch den Graph dazu?
Bin auch deiner Meinung, dass das eine der besten Auslegungen ist, solang man keine Umlenkung verwendet. (Yeti und Evil gehen da übrigens sehr ähnliche Ansätze). 6mm Raderhebung nach hinten ist ohne Umlenkung auch einer der höchsten Werte, die ich bisher gesehen habe. Sehr gut gemacht.
Bezüglich vollständiger Einschätzung müsste man beim Anti Squat noch den Verlauf über die Gangspreizung von 10-50 sehen, damit man einschätzen kann wie sich das ganze in den "Downhill" Gängen verhält bezüglich Pedal Rückschlag...
Das Leverage Ratio sieht grundsätzlich auch gut aus, allerdings finde ich einen Startwert von über 3 immer etwas grenzwertig. Klar wird dadurch im ersten Bereich ein schönes Ansprechverhalten provoziert, aber schwerere Fahrer müssen hier immer ans Limit der zulässigen Luftdrücke gehen, was oftmals trotzdem zu entweder etwas harschem Ansprechverhalten und schwieriger Abstimmung der Zugstufe führen kann...
PS:
Schau dir mal das Kavenz VHP16 im Vergleich an...die haben da im Grunde sehr ähnliche Vorstellungen und mit der Ketten - Umlenkung letztendlich in der Theorie wohl das Maximum an Performance rausgeholt...
Anti Rise durchgängig knapp unter 100 Prozent.
Anti Squat im Sag 130-150 Prozent. (Ähnlich MDE) aber durch die Umlenkung in den Klettergängen leichten Pedalrückschlag für effizientes Klettern und in den Downhill Gängen keinerlei Rückschlag.
Leverage irgendwas um 2,8 bis 2,1...
Raderhebung immer negativ aber nicht zu extrem für gleichbleibende Lastverhältnisse...
etc...
