Here's a good place for questions concerning how to build up your ICB2.0. For reference, these are the key specs:

Travel (rear) 130 mm
Travel (front) 130-160 mm
Axle to crown Height 545 mm +/- 15
Tire clearance 75 mm (recommended: up to 63 mm)
Rear-Shock Standard 200 x 57 mm
Shock-Hardware - / 22.2 x 8
Bottom-Bracket BSA 73 mm
Brake-mount PM180
Rear-axle 12x142 mm (M12 metric)
Headset Standard ZS 44/28.6 I ZS 56/40 Tapered
Seatpost 31.6 mm


Here's a pretty fancy build by MTB-News.de editor @Tobias - what will your ICB look like?


Dabei seit
2. Januar 2016
Punkte Reaktionen
80
I'll build a green ICB 2.0 frame with 90% of the components that are actually on my Kona Explosif:



- 150mm Fox Factory fork (2014, planning to upgrade to 2016 internals or to a 36 if I'll find a good deal)
- Custom wheelset with DRC Bighorn rims/Novatec hubs/orange nipples :) (a little battered, a new, sturdier/heavyer Stans Flow EX wheelset is coming, I'll try both and take a decision which one to keep on the ICB)
- 1x10 Shimano SLX with 29/42 ZetaBike cassette expander/Oneup RadR rear derailleur cage
- Crank Brothers mallet 2 pedals
- ODI EX750 handlebar (750/790 vario size)
- Funn Funnduro stem (60mm but planning to buy the 45mm version or a 50mm from another brand)
- KS Dropzone 125mm dropper post (will upgrade to a KS Lev 150mm)
- Chromag Trailmaster leather saddle
- Chromag grips
- Brakes I just had a gread deal for a new Magura Mt5 set so I'll keep my SLX on the Explosif



Most of my parts are with an orange accent that should match nicely the green frame.


Phimi

Phi-Me-Bikes Korschenbroich
Dabei seit
18. November 2006
Punkte Reaktionen
1.091
Ort
Korschenbroich
My experience with anodized frames is, that the Color changes with the Color of the sunlight. It is awesome, if the frame looks warmer in the evening, with the last sunlight.

Regards...

Dabei seit
2. Januar 2016
Punkte Reaktionen
80
I'll build a green ICB 2.0 frame with 90% of the components that are actually on my Kona Explosif:



- 150mm Fox Factory fork (2014, planning to upgrade to 2016 internals or to a 36 if I'll find a good deal)
- Custom wheelset with DRC Bighorn rims/Novatec hubs/orange nipples :) (a little battered, a new, sturdier/heavyer Stans Flow EX wheelset is coming, I'll try both and take a decision which one to keep on the ICB)
- 1x10 Shimano SLX with 29/42 ZetaBike cassette expander/Oneup RadR rear derailleur cage
- Crank Brothers mallet 2 pedals
- ODI EX750 handlebar (750/790 vario size)
- Funn Funnduro stem (60mm but planning to buy the 45mm version or a 50mm from another brand)
- KS Dropzone 125mm dropper post (will upgrade to a KS Lev 150mm)
- Chromag Trailmaster leather saddle
- Chromag grips

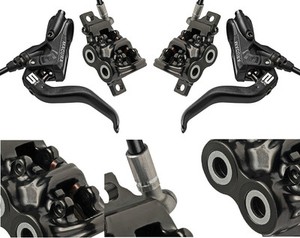

- Brakes I just had a gread deal for a new Magura Mt5 set so I'll keep my SLX on the Explosif



Most of my parts are with an orange accent that should match nicely the green frame.


Few project changes, I just made some shopping for the new ride :cool:
Now I'm broke :ka:


YEP COMPONENTS UPTIMIZER HC 155mm dropper post, all black (orange collar not available :(), Swiss Made piece of art






CRANK BROTHERS MALLET E pedals, black


MAGURA STORM HC 203/180 rotors

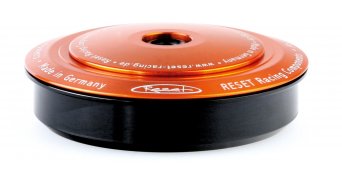

RESET RACING FLATSTACK HEADSET (superlow stack height, 3.5mm upper/2.5mm lower, I have a rather short fork steer tube), black/orange



prod91491_Black_NE_01

FUNN FUNNDURO 45mm stem, black (this one also with a superlow stack height at 30mm), great product, cheap&light



CHROMAG OSX 780mm bar, black/orange and CHROMAG TRAILMASTER DT saddle, black/orange
but I have yet to decide if to mount them on my current frame or on the ICB 2.0 one (love my current natural leather saddle and black chrome handlebar)

prod82455_Black_NE_01

SHIMANO SAINT trigger & ZEE derailleur, to be mounted with Oneup Components RADR cage

Dabei seit
2. Januar 2016
Punkte Reaktionen
80
Just get a pair of brand new rims (kindly replaced from another model by manufacturer):

DRC Bigfoot (Italian Made :love:)
30mm internal width
d-center technology (asymmetrical with offset nipple holes)
hookless
x-drilling system ("crossed" nipple drill pattern, 50% more spokes camber)
lasered graphics







and also orange Noxon tubeless valves with oversize ring nut
